Gasaat Phosphate
PhosCo's wholly owned Gasaat exploration permit is in Tunisia's Kasserine region. The permit (100% PhosCo) covers an area of 112km2 and forms part of PhosCo's plan to develop Tunisia's Northern Phosphate Basin, in partnership with the community. The Gasaat permit encapsulates the former Chaketma project, including interpreted extensions of the deposit.
Project location

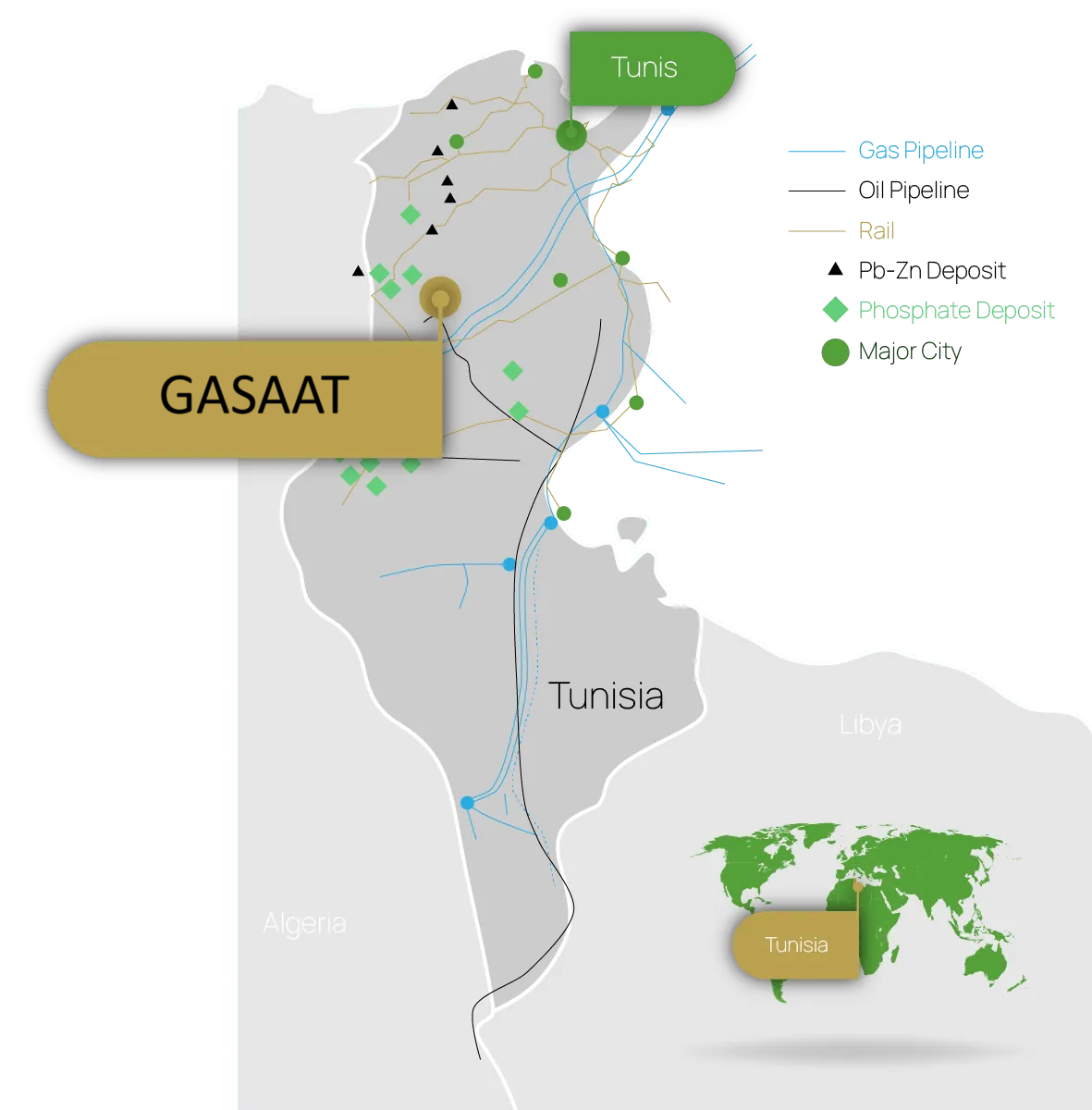

Gasaat is located 210 km south-west of Tunis by road and just 35km from the nearest railhead which connects to the Port of Goulette/Rades for export.
The bulk of the phosphate is located at the base of a massive limestone unit close to the top of a high segmented plateau, which is divided into distinct domains or prospects by a series of normal faults.
For a full description of the KEL and GK resource estimations, refer to the following releases on the ASX website:
- 15/03/2022: Phosphate Resource Update Delivers 50% increase at KEL.
- 17/11/22: 90% Conversion of Inferred to Indicated Resources at GK.

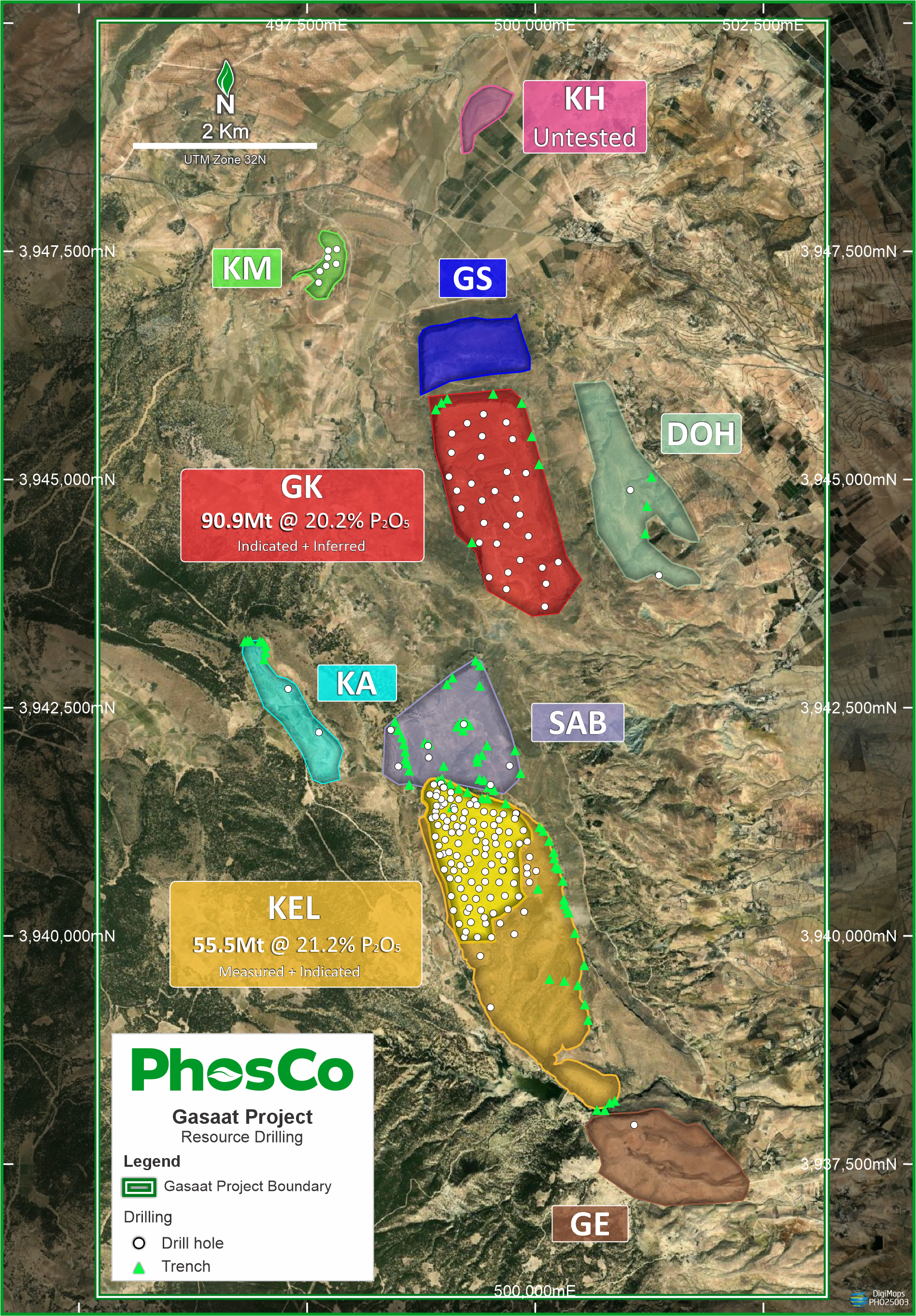

The deposit has a JORC compliant Resource of 166.6Mt @ 20.6% P₂O₅, confirmed from drilling at only four of the project’s nine prospects:
- GK: 90.9Mt @ 20.2% P₂O₅
- KEL : 55.5Mt @ 21.2% P₂O₅
- SABOZ: 8.2Mt @ 20.6% P₂O₅
- KM: 12Mt @ 20.5% P₂O₅
- DOH : One hole drilled (13.25m @ 18.8% P₂O₅)
- GE: One hole drilled (2m @ 13.4% P₂O₅)
- to 9. KA, GS, KH: Undrilled
Gasaat has potential for the development of a large scale, long life, world-class phosphate mining operation and is strategically located in Tunisia close to key export markets and end users.
The phosphate resource at KEL is large, shallow and features simple geology. Drilling results have produced consistent, wide, high-grade phosphate mineralisation close to surface, with 50% of the prospect's known surface mineralisation yet to be drilled.
Phosphate Drill Results
KEL Prospect
| CHDD079 | 37.6m | @21.9% P₂O₅ | from 56m |
| CHDD115 | 33.6m | @22.2% P₂O₅ | from 65m |
| CHDD078 | 35.3m | @21.0% P₂O₅ | from 23m |
| CHDD112 | 33.8m | @21.6% P₂O₅ | from 42m |
| CHDD097 | 32.9m | @21.6% P₂O₅ | from 59m |
| CHDD072 | 31.2m | @21.4% P₂O₅ | from 56m |
KM Prospect
| GADD03 | 53m | @22.3% P₂O₅ | from 53m |
| GADD05 | 32.8m | @21.9% P₂O₅ | from 26m |
| GADD06 | 34.9m | @20.2% P₂O₅ | from 31m |

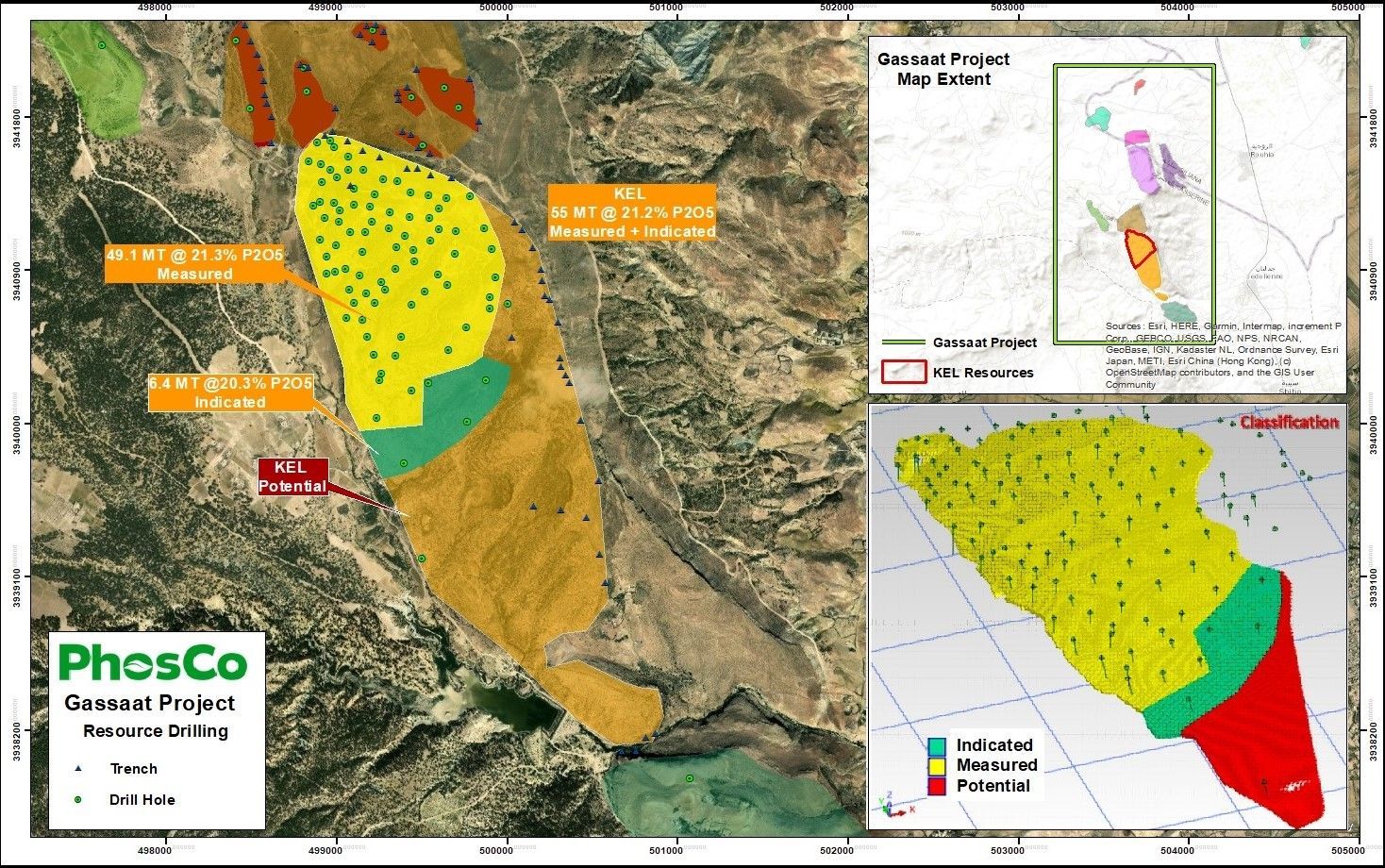

The current Measured and Indicated JORC resource at KEL totals 55.5Mt @ 21.2% P₂O₅. The resource is defined from drilling which only covers 47% of the surface area of known KEL mineralisation.
Conceptual Development
In December 2022, the
Gasaat Scoping Study confirmed a long life, high margin project of 46 years at 1.5Mt/year. Conceptual development is envisaged in two stages:
Stage 1
Rock Phosphate Mine
- Multi-decade mine life.
- Open pit mine, low strip ratio, simple wash/screen or flotation, favourable metallurgy.
Stage 2
Integrated Fertiliser Project
- Commence BFS on value-add phosphoric acid plant.
- Road, rail, power, oil and gas pipelines and port capacity infrastructure available.
